The NETGEAR® Insight Managed Smart Cloud Tri-band 4×4 Wireless Access Point WAC540 is a business grade Cloud Managed 11AC Wave 2 AP featuring MU-MIMO, Beamforming and Airtime fairness with an aggregate throughput of 3 Gbps, Power-over-Ethernet (PoE+) and market leading 5-year warranty.
Frequency Band
2.4GHz and 5GHz
Multi-User MIMO
Yes
Maximum Number of Clients
600
Maximum Theoretical Throughput
400 Mbps (2.4Ghz)
867 Mbps (Low 5GHz)
1733 Mbps (High 5GHz)
Power over Ethernet (PoE)
IEEE 802.3at (PoE+)
SNMP
v1, v2c
Deployment options
Standalone
NETGEAR Insight management solution
Power
Power adapter included only with WAC540PA: 12V DC, 2.5A; plug is localized to country of sale
Mounting
Easy ceiling mounting/wall mouting
Link Layer Discovery Protocol
Yes
Product Ordering Information
WAC540-100NAS, WAC540PA-100NAS
WAC540-100NAS, WAC540PA-100NAS

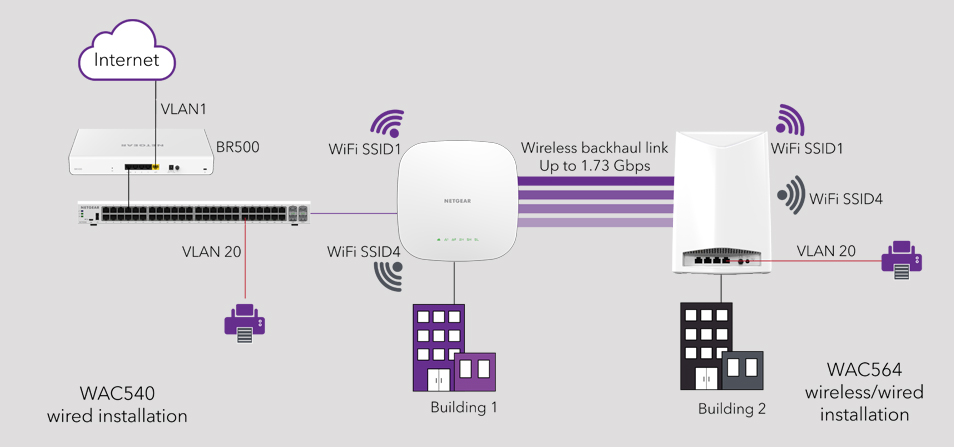

Instant Mesh
Instant Mesh capability with another WAC540 or WAC564
Security
WiFi Protected Access (WPA, WPA2)
Support WPA-enterprise Radius server configuration for both security and accounting
MAC ACL
Yes
Routing Function
No
802.11AC Wave
Wave 2
Simultaneous Bridge/Client Association
Yes
VLAN Support
Yes
Bandwidth Management
Yes
LEDs
Six (6) LED: Power/Insight, LAN1, LAN2, 2.4GHz, 5GHz low, 5G high
Indoor Access Point
Indoor Access Point
